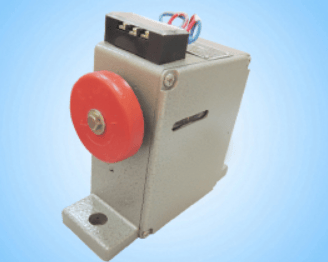

YS-S24V pressure switch

YS-S24V pressure switch

YS-S24V pressure switch can be widely used for measuring and controlling the gauge pressure and absolute pressure of various gases and liquids in fields such as petroleum, chemical, metallurgy, power, and water supply.

2. Working principle: When the pressure inside the system is higher or lower than the rated safety pressure, the disc inside the sensor instantly moves. The switch joint is connected or disconnected by the connecting guide rod. When the pressure drops or rises to the rated recovery value, the disc instantly resets and the switch automatically resets. Simply put, when the measured pressure exceeds the rated value, the free end of the elastic component is displaced, and the switch component is directly or after comparison pushed to change the on/off state of the switch component, achieving the purpose of controlling the measured pressure. The elastic components used in pressure switches include single coil spring tubes, diaphragms, bellows, and corrugated tubes.

3. Technical parameters:

Rated lower limit pressure: 750kPa

Rated upper limit pressure: 900 kPa

Supply voltage: 24~110V DC (one set of contacts)

Protection level: IP23

Accuracy: better than various parameters such as 0.0.5% FS and 1% FS

Splicing caliber: Common specifications 1/4 "1/2", 3/4 ", 6=1", 1 1/4 ", 1/2" (can be customized according to customer needs)

Interface thread: M15 * 1.5, G1/4, G1/2, 1/4NPT (can be customized according to customer needs)

Body material: Carbon steel Q235
