Model: 7MF4433-1CC22-1AB7

Brands: SIEMENS

Product Details

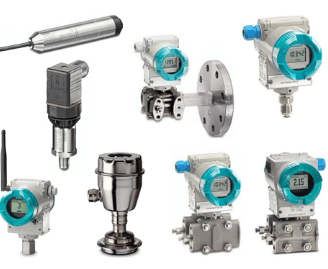

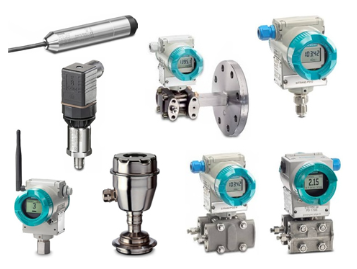

Siemens process instruments · gauge, absolute, differential, flow and level transmitters

Pressure, absolute pressure, differential pressure, flow and level transmitters, 1 mbar to 700 bar

Different requirements require different transmitters.

With different connection options and different enclosures - with or without display.

Whether it is normal operation, intelligent operation or operation through WirelessHART, PROFIBUS PA or Foundation Fieldbus - SITRANSP, it can provide user-friendly and excellent performance.

Measurement sensor meeting basic requirements

● Single range transmitter for gauge pressure and absolute pressure ● Ceramic measuring unit

Suitable for general applications

SITRANS P210

● Single range gauge pressure transmitter

Stainless steel measuring unit

● Used for low-voltage applications

SITRANS P220

● Single range gauge pressure transmitter

Stainless steel measuring unit, fully welded version ● SITRANS LH100 (submersible sensor) for high-pressure applications and refrigeration technology fields

Static pressure level measurement transmitter SITRANS P compact type

Single range transmitter

Standard range

Sanitary Design

● Can provide different sterile connection series

SITRANS P280 transmitter with wireless HART communication function

Use Wireless HART for wireless communication

Battery operation

Use three buttons and SIMATIC PDM and HART modems for parameter settings, or use Wireless ART for unlimited parameter settings

SITRANS P300 transmitter for food, pharmaceutical, and biotechnology

Intelligent and conventional operations, as well as operations through PROFIBUS or Foundation fieldbus Sanitary Design

● Can provide different sterile connection series

Equipped with ATEX, FM, and CSA certifications

SITRANS P300 and SITRANS P DS II transmitters for gauge pressure measurement in the papermaking industry

Intelligent and conventional operations, as well as operations through PROFIBUS or Foundation fieldbus, with PMC connections for the paper industry

Equipped with ATEX, FM, and CSA certifications

SITRANS P310 transmitter (basic type) that meets basic application requirements

Pressure transmitter for measuring gauge pressure, differential pressure, and flow rate ● Measurement accuracy up to 0.075%

Range adjustment 100:1

Set parameters using 3 buttons and HART

Transmitter suitable for high-end demand applications (advanced type)

SITRANS P DS II

The pressure transmitter used for measuring gauge pressure, absolute pressure, differential pressure, flow rate, and level can achieve a measurement accuracy of 0.065%

Range adjustment 100:1

Parameter setting method:

-For SITRANS P DS II HART, use 3 buttons and HART

-For SITRANSP DS II PA, using 3 buttons and PROFIBUS PA - For SITRANSP DS IIFF, using 3 buttons and Foundation fieldbus is more suitable for horizontal differential pressure pipelines

● Zone 1 intrinsic safety or explosion-proof enclosure

Equipped with ATEX, FM, and CSA certifications

Pressure transmitters used for measuring gauge pressure, differential pressure, flow rate, and level

The measurement accuracy can reach 0.04%

Range adjustment 100:1

Parameter setting method:

-For SITRANS P DS II HART, use 3 buttons and HART

For SITRANS P DS II PA, use 3 buttons and PROFIBUS PA - for SITRANS P DS II FF, use 3 buttons and Foundation fieldbus

The transmitter used for measuring pressure difference, flow rate, and liquid level has a measurement accuracy of up to 0.03%

Range ratio 200:1

Very fast step response

Excellent long-term stability

: . Use 3 buttons and HART for parameter setting ● Long term drift is extremely low

● Zone 1 intrinsic safety or explosion-proof enclosure

Equipped with ATEX, FM, and CSA certifications
