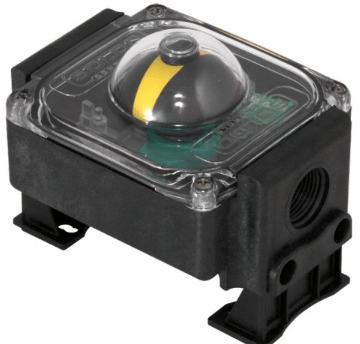

Model SPC42A0 is SOLDO SP limit switch boxseries.

Model SPC42A0 is SOLDO SP limit switch boxseries.

Model: SPC42A0-DHW07B2

Brands: SOL .DO

Catalog: Positioners

Compact limit switch box for industrial, water treatment and light duty applications.

Available in either glass reinforced resin or nickel plated aluminum, with flat lid or 3D indicator.

The SP is a corrosion resistant device, able to satisfy the needing in water treatment and desalination plants; SP can also match the Ex iaIIC T6 standards with the integral intrinsically safe certification, covering enclosure and electrical components inside.

Features:

v Glass reinforced resin enclosure with transparent polycarbonate lid, ensuring a device totally unaffected by corrosion, in salty and humidatmosphere.

v One cable entry metrics or imperial.

v Enhanced strength on the composite enclosure, with a thick molding and durable threaded cable entries.

v Easy wiring through the terminal PCB board

vV NOVA V3TM switch option ensures extreme durability and high power switching capabilities

v ASI communication protocol board

v Integrated mounting kit for Namur actuators.

Technical Data:

Materials:

Glass reinforced resin body with transparent polycarbonate cover

Stainless steel fasteners

Approvals:

ATEX, EAC:

ExII 2GD Ex ia IIC T4/T5/T6

Ex ia IIB 44....108C Db IP6*

Ta: -15"C<Ta<80"C

SIL certificate:

Up to SIL 2 certified by TUV

Protection rating:

IP 65

Cable entries option:

One cable entry M20 or 1/2" NPT

Temperature:

Standard operating temperature -15C +80"C Lower and higher temperature options available on request.

SOLDO SP limit switch box series more hot sale models:

SPN3200-DHW00A1

SPN3200-DHW00B1

SPN3200-DHW00A2

SPN3200-DHW00B2

SPN3200-DHW07A1

SPN3200-DHW07B1

SPN3200-DHW07A2

SPN3200-DHW07B2

SPN3200-DHW02A1

SPN3200-DHW02B1

SPN3200-DHW02A2

SPN3200-DHW02B2

SPN3200-DHW10A1

SPN3200-DHW10B1

SPN3200-DHW10A2

SPN3200-DHW10B2

SPN3200-DHW17A1

SPN3200-DHW17B1

SPN3200-DHW17A2

SPN3200-DHW17B2

SPN3200-DHW12A1

SPN3200-DHW12B1

SPN3200-DHW12A2

SPN3200-DHW12B2

SPN3200-DHA00A1

SPN3200-DHA00B1

SPN3200-DHA00A2

SPN3200-DHA00B2

SPN3200-DHA07A1

SPN3200-DHA07B1

SPN3200-DHA07A2

SPN3200-DHA07B2

SPN3200-DHA02A1

SPN3200-DHA02B1

SPN3200-DHA02A2

SPN3200-DHA02B2

SPN3200-DHA10A1

SPN3200-DHA10B1

SPN3200-DHA10A2

SPN3200-DHA10B2

SPN3200-DHA17A1

SPN3200-DHA17B1

SPN3200-DHA17A2

SPN3200-DHA17B2

SPN3200-DHA12A1

SPN3200-DHA12B1

SPN3200-DHA12A2

SPN3200-DHA12B2

SPN3200-DHG00A1

SPN3200-DHG00B1

SPN3200-DHG00A2

SPN3200-DHG00B2

SPN3200-DHG07A1

SPN3200-DHG07B1

SPN3200-DHG07A2

SPN3200-DHG07B2

SPN3200-DHG02A1

SPN3200-DHG02B1

SPN3200-DHG02A2

SPN3200-DHG02B2

SPN3200-DHG10A1

SPN3200-DHG10B1

SPN3200-DHG10A2

SPN3200-DHG10B2

SPN3200-DHG17A1

SPN3200-DHG17B1

SPN3200-DHG17A2

SPN3200-DHG17B2

SPN3200-DHG12A1

SPN3200-DHG12B1

SPN3200-DHG12A2

SPN3200-DHG12B2

SPN3200-DZW00A1

SPN3200-DZW00B1

SPN3200-DZW00A2

SPN3200-DZW00B2

SPN3200-DZW07A1

SPN3200-DZW07B1

SPN3200-DZW07A2

SPN3200-DZW07B2

SPN3200-DZW02A1

SPN3200-DZW02B1

SPN3200-DZW02A2

SPN3200-DZA12A2

SPN3200-DZA12B2

SPN3200-DZG00A1

SPN3200-DZG00B1

SPN3200-DZG00A2

SPN3200-DZG00B2

SPN3200-DZG07A1

SPN3200-DZG07B1

SPN3200-DZG07A2

SPN3200-DZG07B2

SPN3200-DZG02A1

SPN3200-DZG02B1

SPN3200-DZG02A2

SPN3200-DZG02B2

SPN3200-DZG10A1

SPN3200-DZG10B1

SPN3200-DZG10A2

SPN3200-DZG10B2

SPN3200-DZG17A1

SPN3200-DZG17B1

SPN3200-DZG17A2

SPN3200-DZG17B2

SPN3200-DZG12A1

SPN3200-DZG12B1

SPN3200-DZG12A2

SPN3200-DZG12B2

SPN3200-EHW00A1

SPN3200-EHW00B1

SPN3200-EHW00A2

SPN3200-EHW00B2

SPN3200-EHW07A1

SPN3200-EHW07B1

SPN3200-EHW07A2
