German SIEMENS valve positioner 6DR5016-0EN00-0AA0 intelligent single acting in stock

Product Code (Commercial Code): 6DR5016-0EN00-0AA0

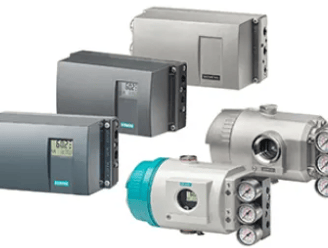

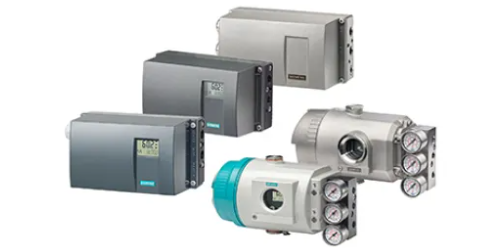

Product Description: SIPART PS2 Intelligent Electric Pneumatic Position Regulator is used for pneumatic assist and swing drive 2-wire technology; 4... 20mA is simple

Effective stainless steel shell pressure resistance, Ex d

Product family: SIPART PS2

Product Lifecycle Management (PLM): PM300: Effective Products

Origin: Germany

The SIPART PS2 locator is mainly used in the following industries:

Chemical/Petrochemical

Power plant

Paper making and glass

Water and sewage

Food and pharmaceuticals

Offshore platform

The SIPART PS2 locator can be used for all pneumatic actuators and can provide:

Various shell designs and materials (clones, stainless steel or aluminum shells)

Used in non hazardous areas

Various types used in hazardous areas

- Intrinsic safety explosion-proof type

- Explosion proof type

- Non sparking type

- Dust explosion-proof type

Other types:

0/4~20 mA control signal, with/without HART communication

Equipped with PROFIBUS PA communication interface

Equipped with FOUNDATION Fieldbus (FF) communication interface.

The SIPART PS2 6DR5016 series locators offer decisive advantages: • Easy installation, automatic initialization (zero position and travel range automatically adjusted) • Easy operation - with three buttons and user-friendly dual line display for local operation (manual operation) and group status - configured through SIMATIC PDM

High quality control originates from online adaptive programs

The gas consumption during steady-state operation is negligible

• "Tight Close" function (ensuring maximum positioning pressure on the valve seat)

• "Hold" function: Keep in the current position when power or signal is cut off (in situations where SIL requirements are not applicable).

For example, for an 8-liter actuator, the position stability of the SIPART PS2 locator with "hold" function is 0.3%/h.

Multiple functions can be achieved through simple configuration, such as setting characteristic curves and limit values

• Extended diagnostic capabilities for valves and actuators

The linear and angular actuators use the same type of locator

• Less movable parts, therefore less sensitive to vibration

Under extreme environmental conditions, external non-contact sensors can be selected

Intelligent solenoid valve: Partial stroke testing and solenoid valve function integrated into one device

Partial travel testing, such as for safety valves

Full stroke testing, multi-stage step response testing, valve performance testing, used for valve performance and maintenance evaluation

Pure natural gas, carbon dioxide, nitrogen, or inert gases can also be used as gas sources

SIL (Safety Integrity Level) 2
